Speed Doors

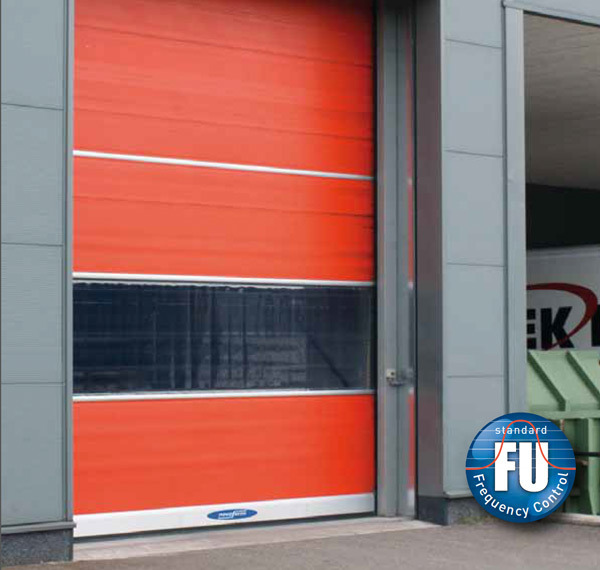

NovoSpeed Heavy | Outdoor

An exterior door should be left open for the shortest possible period of time. A traditional exterior door opens and closes relatively slowly, leading to considerable energy loss. However, energy loss can be minimised by combining a ‘slow’ exterior door with a rapid roll door.

36 m² max.
Class 0 wind resistance
1 m/s opening speed
1.5 m/s opening speed with frequency control

Specifications / Technical data

NovoSpeed: Heavy
Max. surface area: (W x H) 36 m²
Max. width: (W) 6000 mm
Max. height: (H) 6000 mm
Opening speed: 1 m/s
Opening speed with frequency control: 1.5 m/s
Closing speed: 1 m/s
Closing speed with frequency control: 0.5 m/s
Door curtain weight: 3000 gr/m²
Door curtain thickness: 3 mm
Robust and energy-efficient

Product Benefits

Class 0 wind resistance
On a special enquiry basis, available up to a max. size of 64 m²
Heavy duty product for outdoor use and high wind loads

Proven reliability
Wide side columns in combination with a sophisticated tensioning system make a major contribution to the excellent stability offered by the NovoSpeed Heavy. The robust aluminium bottom beam, heavy-duty aluminium stiffener/hinge profiles and 3 mm thick door leaf complete this door’s impressive specifications. When fitted behind a sectional door or roller shutter, the NovoSpeed Heavy creates a more pleasant working environment and saves energy.

The traditional sectional door is opened in the morning and closed at night. The rapid roll door seals the opening during the working day. The high speeds at which it opens and closes minimise the air flows that cause energy loss. The NovoSpeed range of exterior doors has obviously been designed to withstand the extreme conditions in which these doors operate.
